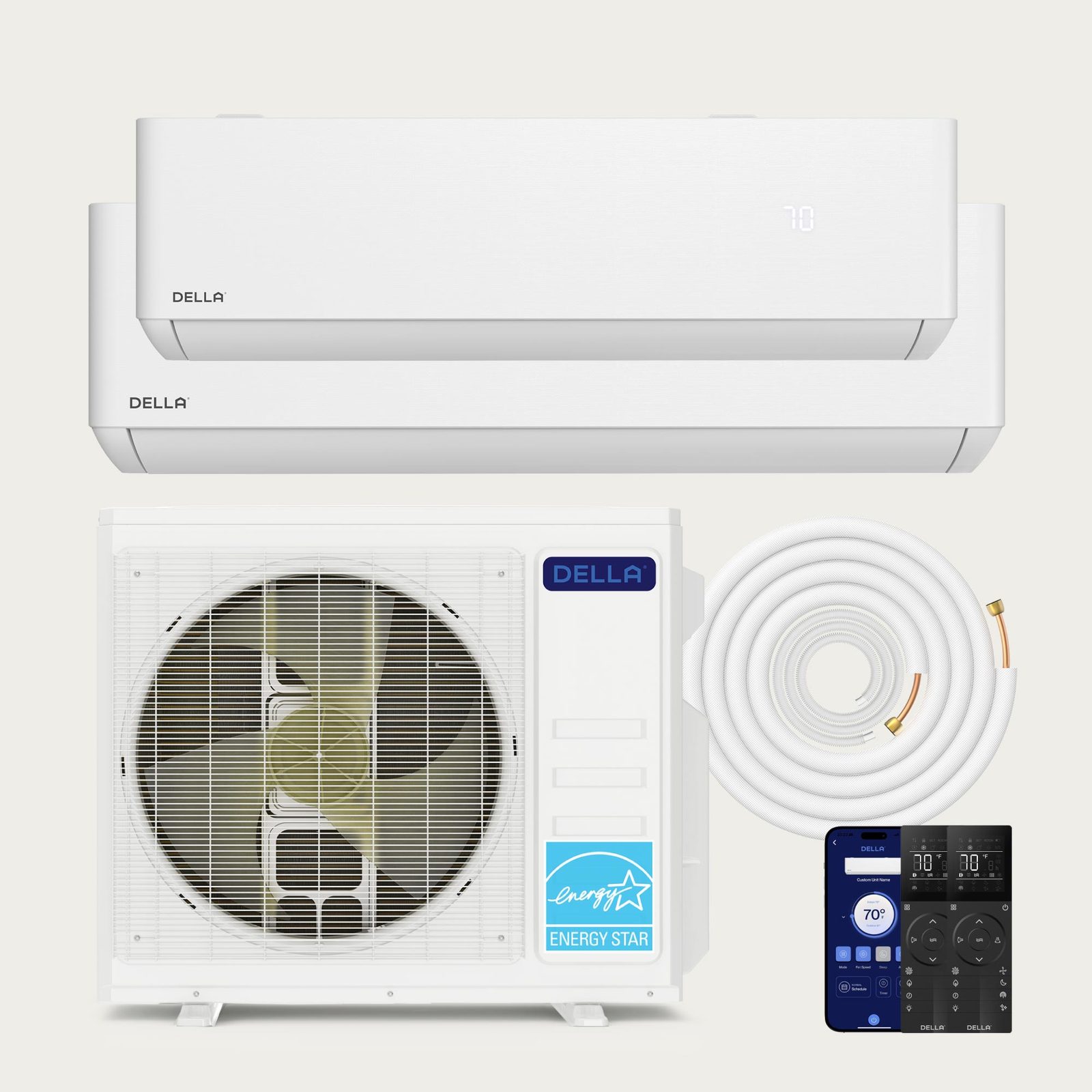

Aria 20K Dual-Zone Mini Split
Two rooms, two climates, one condenser.
View objectCollection 02 — Climate
Climate Systems
Ductless systems, specified by room.
A mini-split is a small reversible refrigeration circuit in two parts: an outdoor condenser and one or more indoor air handlers, joined by refrigerant line sets. The number of handlers is the number of zones — rooms that can hold different temperatures at the same time. Capacity is measured in BTU, efficiency in SEER2 for cooling and HSPF2 for heating, and neither figure means much without a load calculation for the room itself.

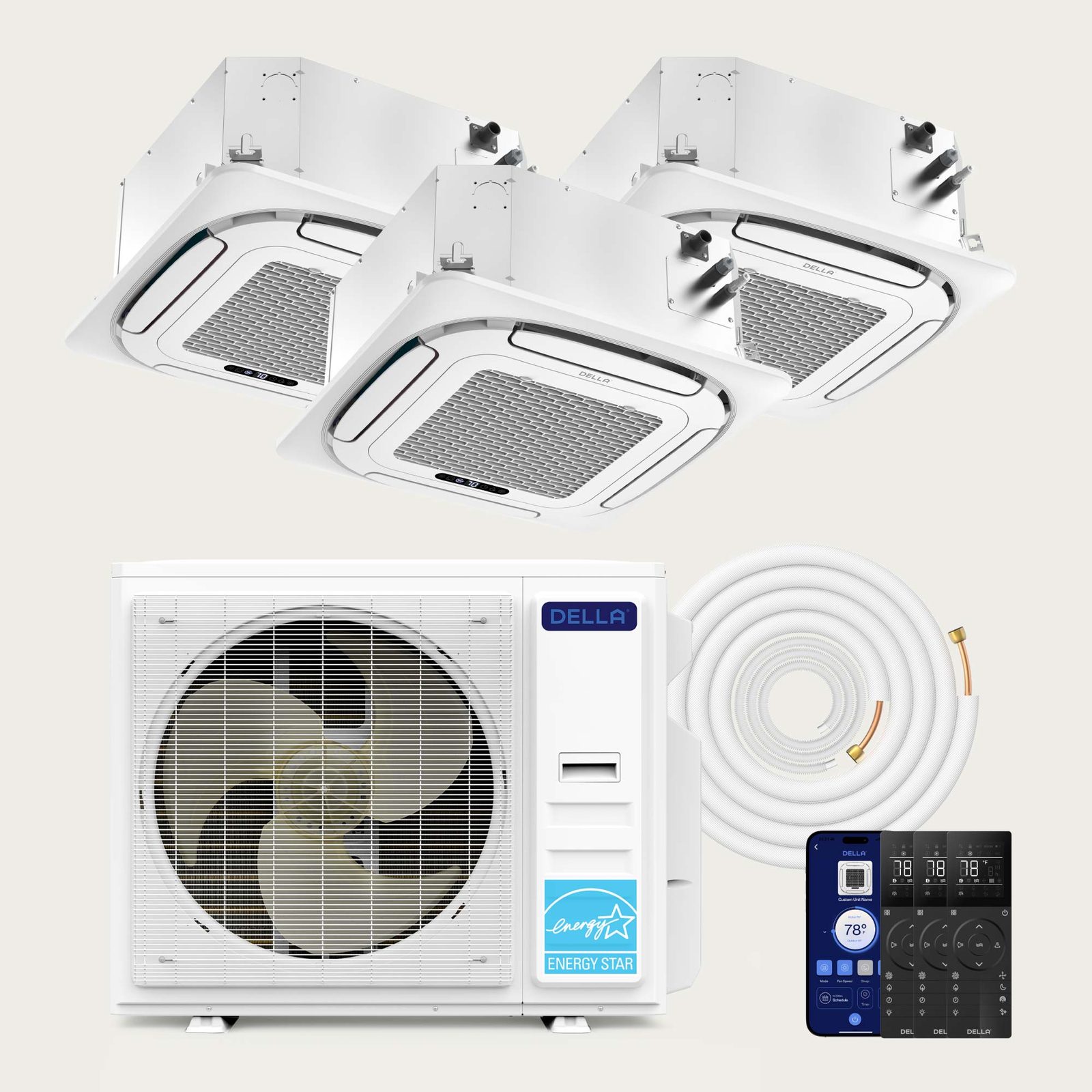

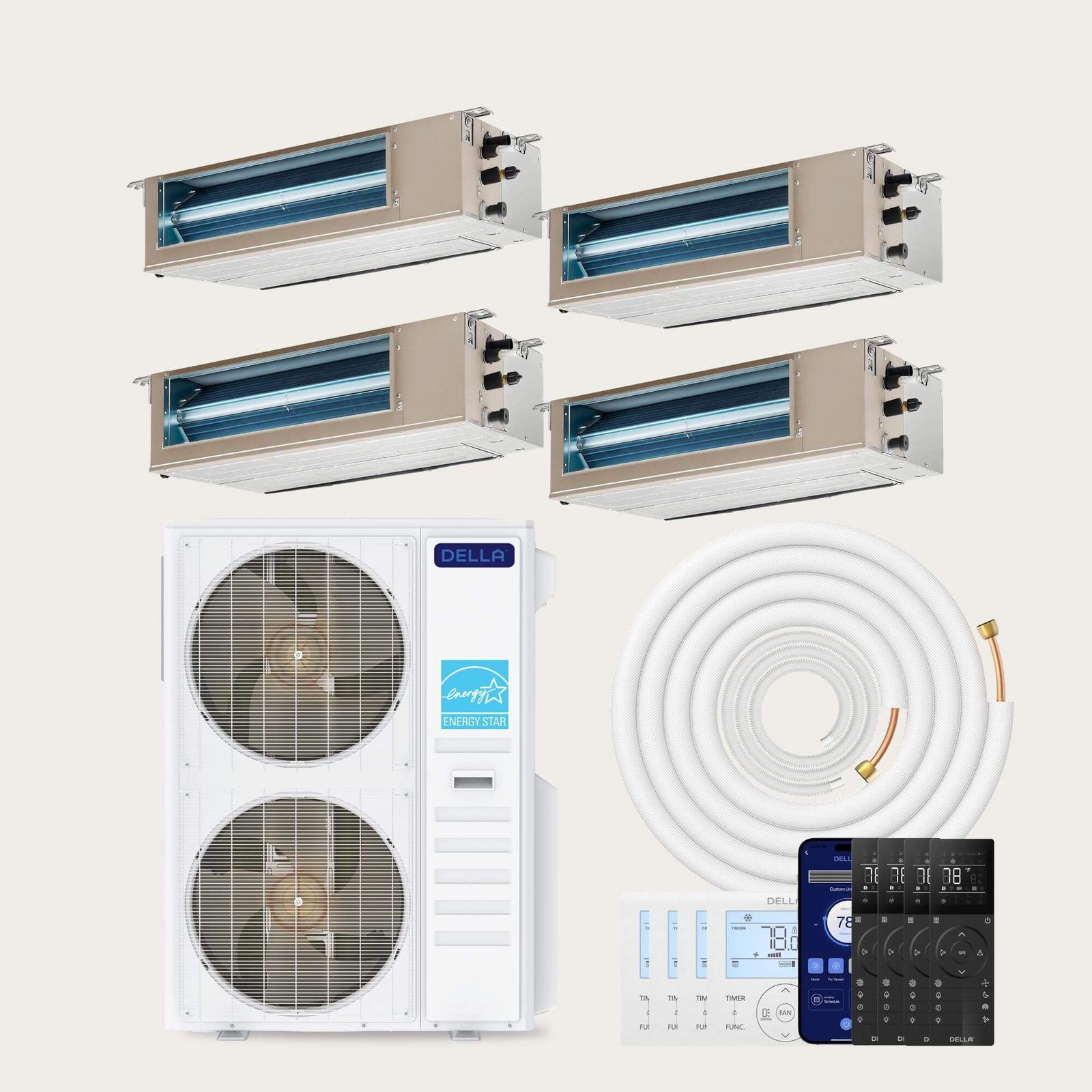

The format follows the architecture. A wall-mounted head is the fastest to install and the simplest to service. A ceiling cassette returns air in four directions and suits rooms with a suspended or cut ceiling. A concealed ducted unit hides above a ceiling or in an attic and serves rooms that cannot give up wall space. All three are heat-pump ready, and all three need a licensed installer, a clear route for the line set, a condensate drain, and a dedicated electrical supply.
Climate
The range
4 objects in the current collection. Dimensions, finishes and packing data are on the trade line sheet.
A short guide
A short guide to ductless systems
-
Count rooms, then windows
BTU charts are a starting point. A west-facing room with a glass wall is not the same load as a shaded bedroom of equal size; specify from a real load calculation.
-
Pick the format before the model
Wall-mounted, cassette and concealed ducted units fail in different rooms. The ceiling and the wall decide more than the efficiency figure does.
-
Budget the installation
Line sets, condensate, electrical work and lift access are part of the system cost. A quote that excludes them is not yet a quote.
Trade
Request the climate line sheet
Line sheets include dimensions, finishes, packing data and lead times. Tell us the quantities and destination port and we will reply with a quotation.
Trade pricing on request. Minimum order quantities apply.
